Specifications & Dimensions
FAQ
About this item
Customer youtube video comments
Nominal Voltage
72V (76.8V)
Nominal Capacity
120Ah
Energy
9216Wh (9.22kWh)
Standard Charge Voltage
87.6V
Discharge Cut-off Voltage
60V
Standard Charge Current
50A
Max. Charge Current
100A
Max. Constant Discharge Current
250A
Peak Discharge Current
400A @35S / 600A @3S

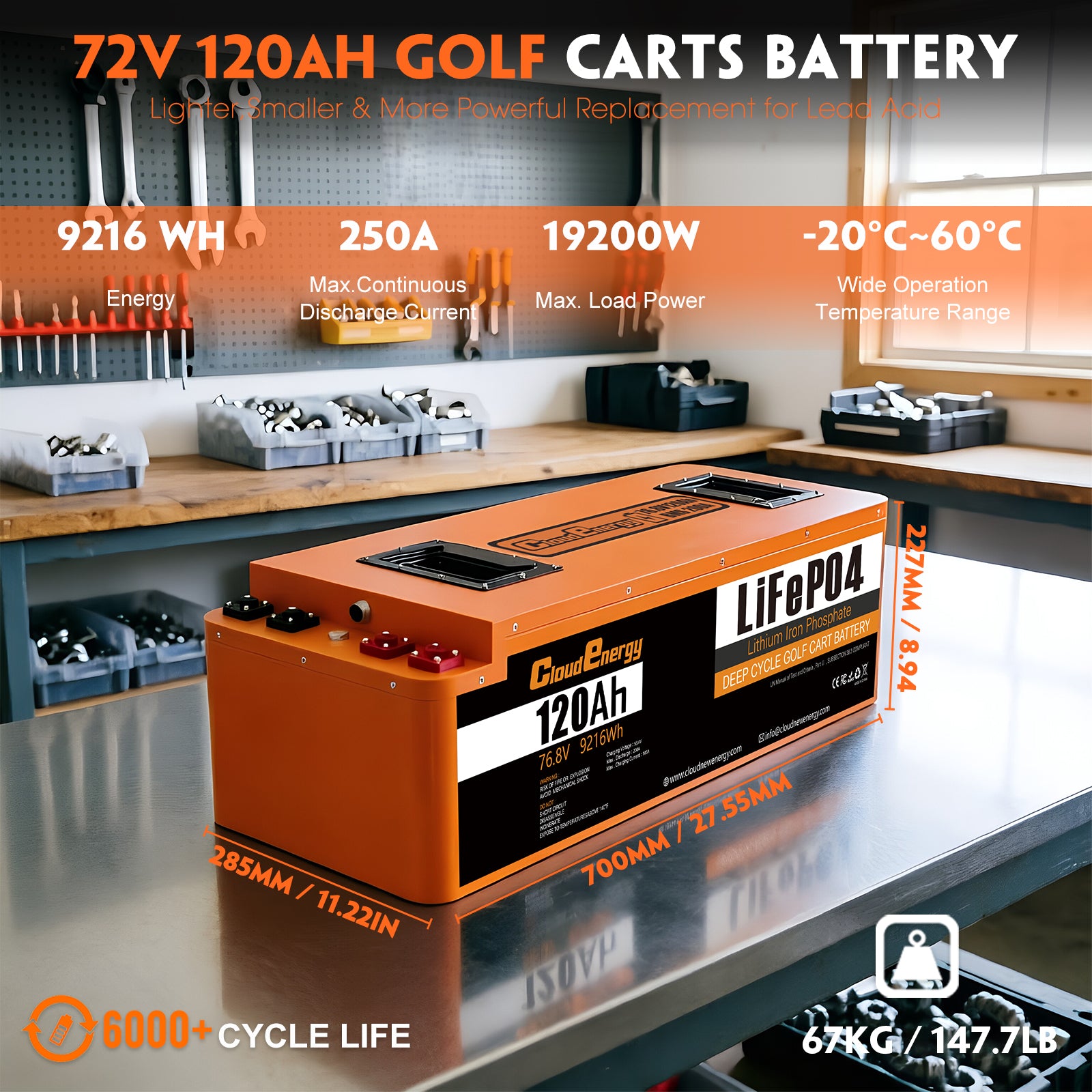

Dimension
700 × 285 × 227 mm (27.55 × 11.22 × 8.94 in)
Weight
67kg / 147.7lb
Cycle Life
6000+cycles
Charge Temperature
0~60 °C
Discharge Temperature
-20~ 60°C
Storage Temperature
10~ 45°C
1: Is this 72V 120Ah lithium battery compatible with my golf cart?
Yes. The Cloudenergy 72V (76.8V) 120Ah LiFePO4 battery is designed for most 72V golf carts and electric utility vehicles. It is compatible with many custom-built, high-performance, and commercial 72V systems. Before purchasing, please verify your vehicle's voltage, controller specifications, and battery compartment dimensions.
2: How far can a 72V 120Ah golf cart battery travel on a full charge?
The 9216Wh battery provides significantly longer runtime than traditional lead-acid batteries. Actual driving range depends on vehicle weight, terrain, speed, passenger load, and driving habits. Under normal conditions, it offers extended operating time with consistent power output throughout the discharge cycle.

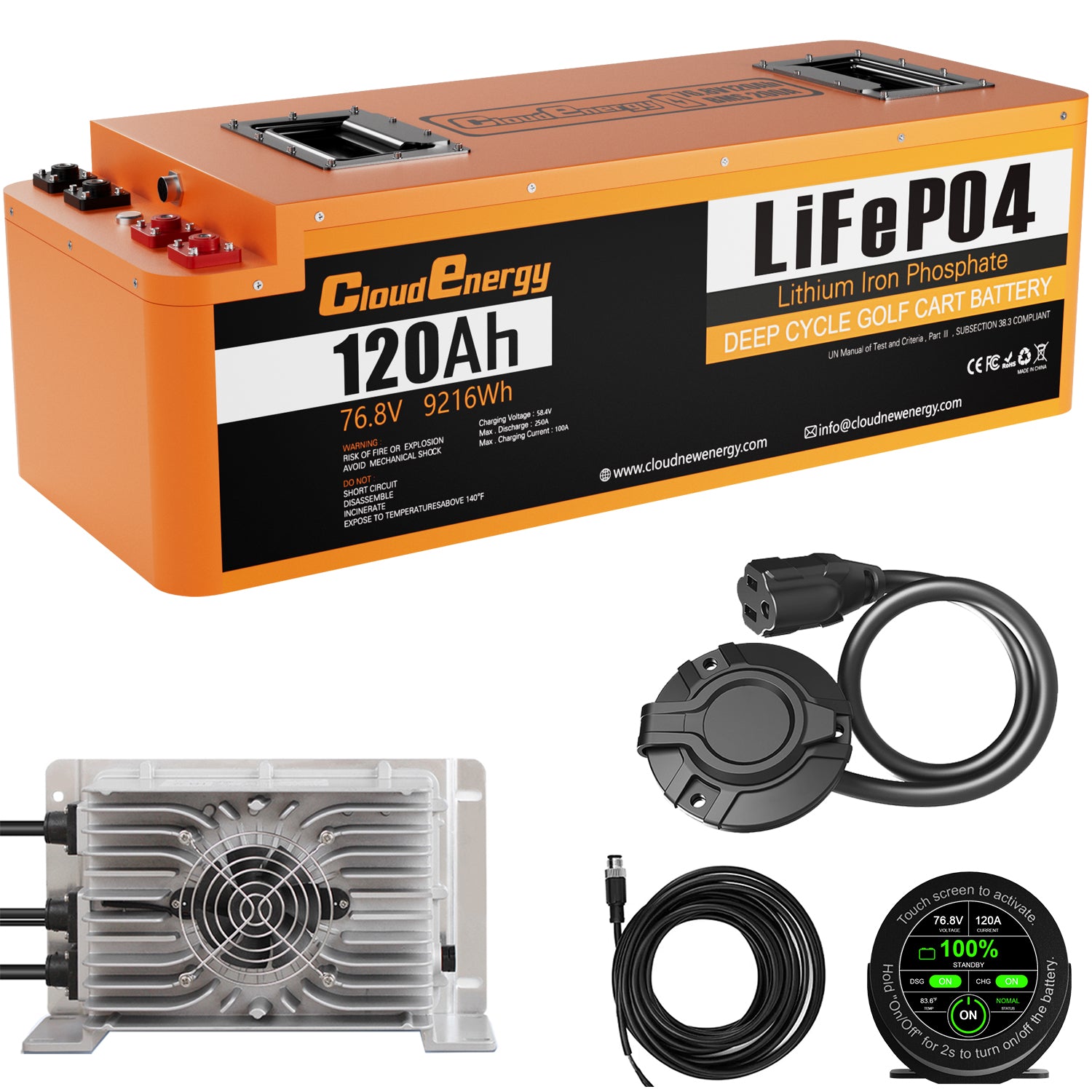

3: What comes with the battery kit?
The complete kit includes:
72V (76.8V) 120Ah LiFePO4 Battery
Compatible Lithium Battery Charger
LCD Battery Monitor
Mounting Accessories
User Manual
Everything you need for a straightforward lithium battery upgrade.
4: Does this battery include a Smart BMS?
Yes. The battery features a built-in 250A Smart Battery Management System (BMS) that continuously protects against overcharge, over-discharge, overcurrent, overheating, and short circuits. The intelligent BMS also balances individual cells to maximize battery performance and service life.
【5 years warranty, 24 hours service】
All of Cloudenergy's 48V 120Ah LiFePO4 batteries support 5 years warranty. With our online service, 24 hours friendly and professional customer support, if you have any questions, please feel free to contact us and we will do our best to meet your needs.
【3-in-1 Package】
Cloudenergy 48V (51.2V) 120Ah Lithium-Ion Golf Cart Battery, the kit comes with everything! Comes with a high-performance 58.4V 20A Li-Ion quick charger, a 2.8-inch LCD touch screen (for real-time battery information), and a 78.74-inch battery mounting strap to make battery installation easy and secure!
【Built-in Bluetooth 200A BMS 】
Cloudenergy golf cart 48V 120Ah lithium battery built-in Bluetooth BMS, easy to monitor the battery information, and both high-performance charging and discharging protection, With a great 10.24kw power,constant discharge 200A(Peak 400A 35S, 600A 3S). BMS configured with low-temperature cut-off technology can effectively prevent over-charging, over-discharging, over-current, short-circuit and over-temperature.
【6000+ deep cycles & 80% DOD】
Cloudenergy 48V 120Ah LiFePO4 battery provides more than 6000 deep cycles compared to traditional lead-acid batteries only about 300-600 cycles, which extends the battery lifespan more than 10 times. 6000+ deep cycles using life and 80% depth of discharge are also better than many LiFePO4 battery of other brands.
【Safe and Reliable Power Source】
Cloudenergy golf cart 48V 120Ah batteries are designed for 48V golf carts, utilizing high-density A-grade cells for high energy(Support 2C Discharge) and performance,The battery case is made of ABS, which is fireproof shockproof and IP67,Compatible with all major brands of golf cart controllers on the market,they are ideal for golf carts,electric vehicles,Trolling Motor,marine engines and other applications.
Powerful Through Any Task with Cloudenergy Smart BMS

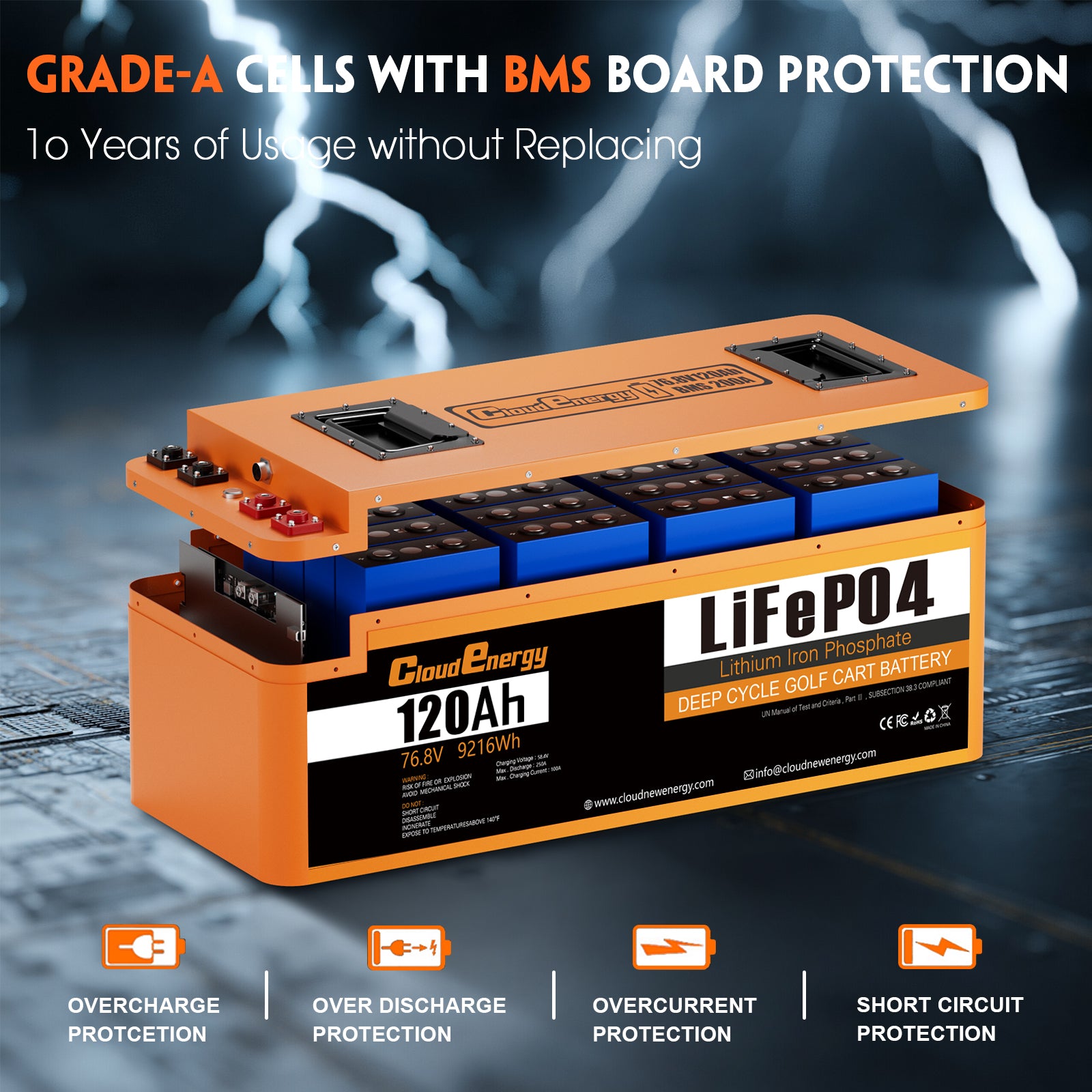

Automotive-Grade LiFePO4 Cells Built for Maximum Performance
Reliable Performance in Extreme Temperatures

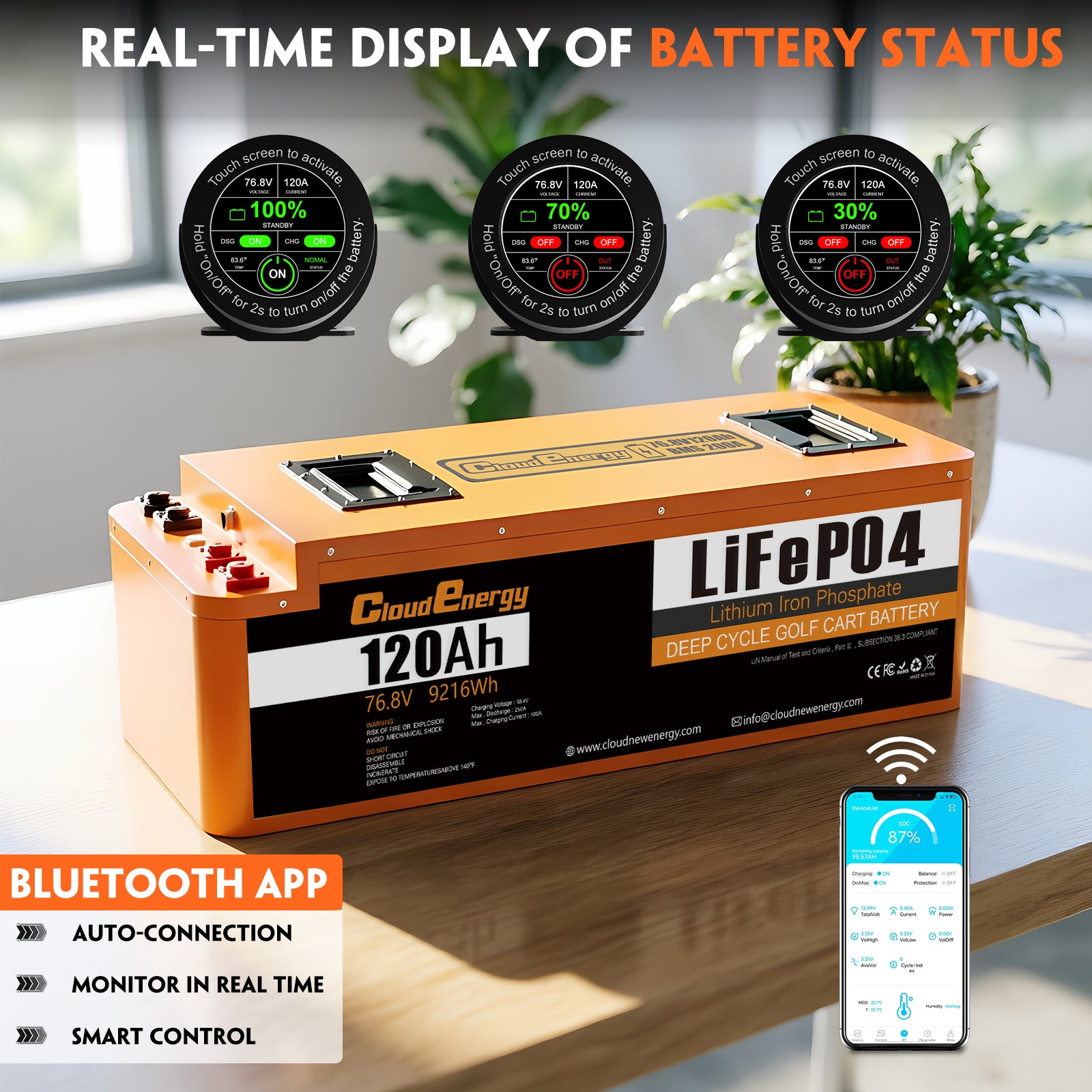

Monitor Your Battery Anytime with Bluetooth & LCD Display
9216Wh High-Capacity Power for Longer Driving Range
One Battery, Multiple Applications
Let your power never stop
